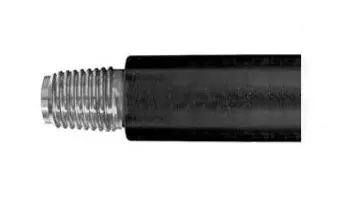

The drill pipe is designed to seamlessly integrate with Ditch Witch® drill rig JT4020M1. Constructed from a single piece of high-strength alloy S-135 steel, the rod boasts exceptional durability and reliability. Its precision-engineered threaded connection, labeled DW 2.59-4, ensures a secure fit during drilling. With a length of 14.75 feet, this drill pipe offers versatility and efficiency, making it a valuable asset for horizontal directional drilling operations.
| Specification | |
|---|---|
| Compatible Vermeer Rigs : | JT4020M1 |
| Manufacturing Process : | Forged |
| Material : | High-strength alloy S-135 steel |
| Connection : | DW 2.59-4 |
| Mid-Body OD (inch) : | 2.875" |
| Tool Joint OD (inch) : | 3.500" |
| Length (ft) : | 14.75' |
| Weight (lb) : | 176 |
| Max Torque (ft/lb) : | 5000 |
| Slope Per Rod : | 8.00% |
| Bend Radius (ft) : | 185' |
| Rod Basket Size : | 16 / 32 |
